HIGH TORQUE INNOVATION
INTERLOCK® SEMI FLUSH MAXIMUM TORSIONAL STRENGTH & CLEARANCE
WITH OUR TORSIONALLY RUGGED CONNECTOR, INTERLOCK KEEPS YOUR COMPLETIONS ON TIME, EVERY TIME.
HIGH TORQUE - FAST MAKEUP

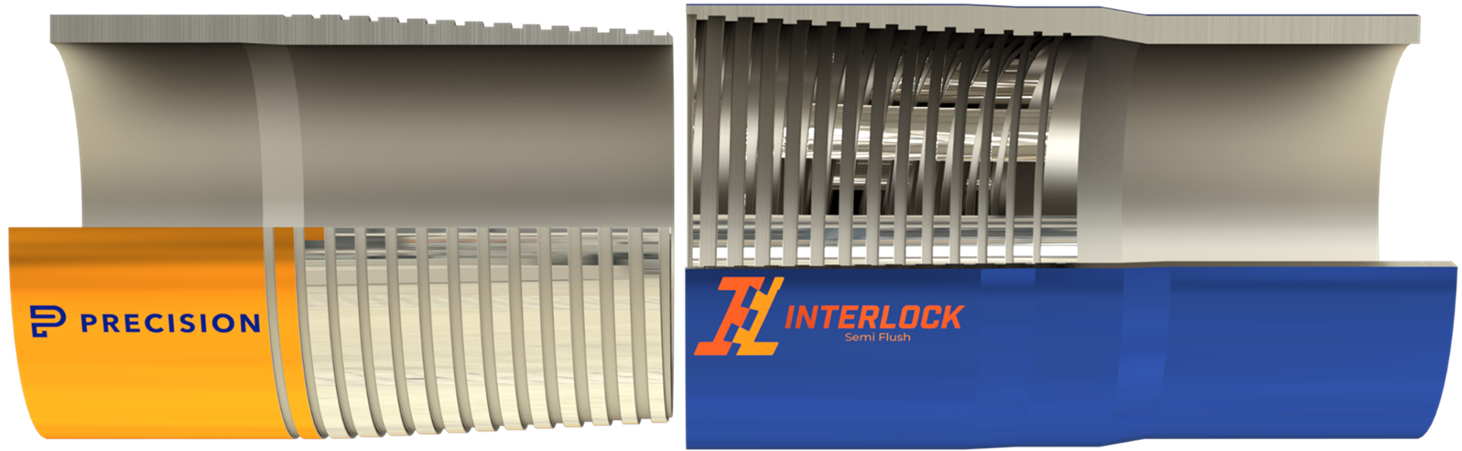

The INTERLOCK® SEMI FLUSH uses flank locking dovetail threads to counteract high torque loads. It has a deeper stab and makes up in half the number of turns of an API buttress.
Details
- OVER-TORQUE: The INTERLOCK® SEMI FLUSH features better over-torque characteristics which keeps the connection intact and provides a better chance of drift-ability past yield.
- LOW PROFILE OUTER DIAMETER: for clearance and reduced drag through a horizontal section. No coupling to dig into the shale. Less force to push through the horizontal section.
- DURABLE SEALING: The dovetail thread handles higher bending loads and structural comprehensive loads while maintaining its seal.
- DEEP STAB AND FAST MAKEUP: Fewer threads per inch and a steeper taper allow the INTERLOCK to make up quickly and stab deeply. The threads are flat crested which reduces cross threading and binding on makeup by 75%.
View the video below to see how INTERLOCKING Dovetail threads work.
100% SEALING CAPABILITY
The dovetail threads make full contact on all surfaces for maximum sealing. Internal and external pressure ratings match API pipe body ratings.
INTERLOCK® SEMI FLUSH Data Sheets
90% TENSION & COMPRESSION
The INTERLOCK® SEMI FLUSH connection provides 90% tensile and compressive strength. High operational torques for high performance during downhole rotation.
Details
- OVER-TORQUE: The INTERLOCK® SEMI FLUSH features better over-torque characteristics which keeps the connection intact and provides a better chance of drift-ability past yield.
- LOW PROFILE OUTER DIAMETER: for clearance and reduced drag through a horizontal section. No coupling to dig into the shale. Less force to push through the horizontal section.
- DURABLE SEALING: The dovetail thread handles higher bending loads and structural comprehensive loads while maintaining its seal.
- DEEP STAB AND FAST MAKEUP: Fewer threads per inch and a steeper taper allow the INTERLOCK to make up quickly and stab deeply. The threads are flat crested which reduces cross threading and binding on makeup by 75%.
The design difference
MAX TORQUE. MAX PRESSURE.
THE INTERLOCK
IT'S TIGHTER
Designed to retain high-performance sealing after rotating and fracing.
IT'S SAFER
Tested and sealed tight, preventing the leakage of well-bore fluids.
IT'S STRONGER
Slim OD and 90% pipe body strength. Designed for bending, rotating and reciprocating through horizontal sections.
